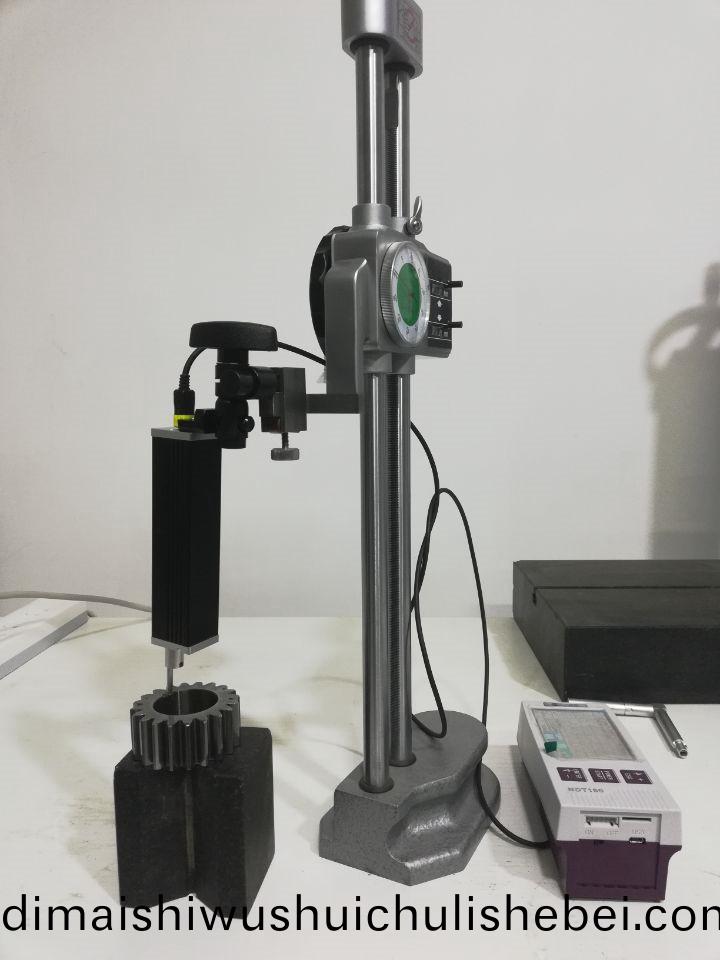

Main Parameter:?Mechatronics and ergonomics design, small size, light weight, easy to operation ?The stylus drive unit can be stored within the main unit for standard measurement, or separated from the display unit by using the supplied cable which allows more flexibl

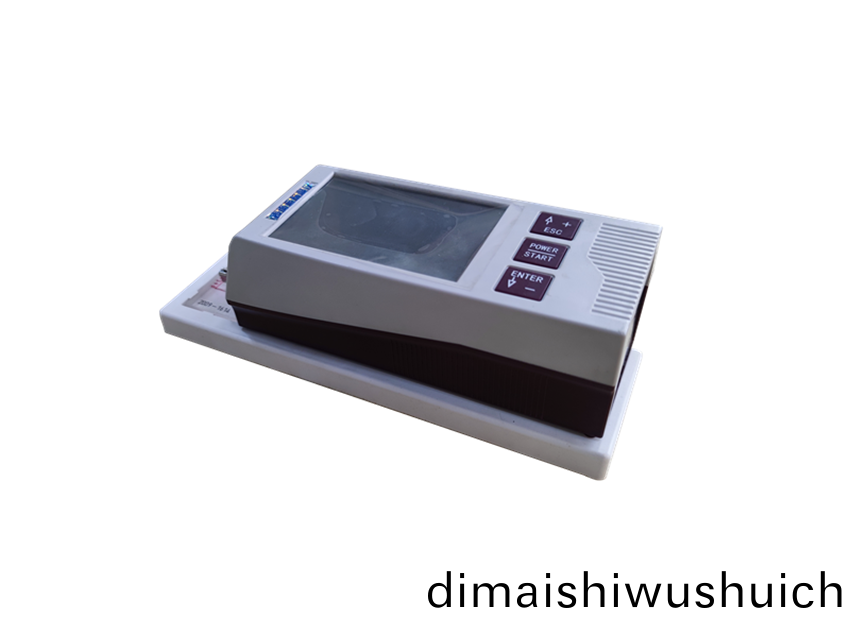

Portable Surface Roughness Measuring Instrument H20?is a high accuracy instrument for measuring surface roughness. It can be used on variety of machining parts and operates on various surfaces, not only flat but also outer cone, outer cylinder, curved, pinholes, grooves, recesses grooves and axle etc.
This intrument?allows surface roughness measurement both on metal and non-metal workpieces. It is suitable for machining and manufacturing, quality control, inspection departments, especially for measurement on large and heavy workpiece, assembly line, on site. The KR310 is a Non Destructive Testing instrument, damage won’t caused to testing piece.
Technical Data
Measuring rang | The Z axis (vertical) | 400μm (-200μm~+200μm) / 12600μin (-7875μin~+7875μin) |
The X axis (Transverse) | 17.5mm（0.69 inch） | |
Resolution | the Z axis (vertical) | 0.002μm/±20μm, ?0.004μm/±40μm 0.008μm/±80μm, ?0.02μm/±200μm |
Parameter ? | Ra Rz Rq Rt Rc Rp Rv R3z R3y?Rz(JIS) Ry Rs Rsk Rku Rmax Rsm Rmr RPc Rk Rpk Rvk Mr1 Mr2 | |
Graphic | load?curve, Roughness profile, filtered curve | |
Filter | RC,PC-RC,Gauss,D-P | |
The sampling length(lr) | 0.25,?0.8,?2.5mm | |
Assessment length（ln） | Ln=?lr×n ???n=1~5 | |
Sensor | Measuring principle | Inductance |
Stylus tip | Diamond, 90 cone angle, 5μmR | |
Force | Measuring force<4mN, Skid force<400mN | |
Probe head | hard alloy, skid radius of curvature: 40mm | |
Traversing speed | lr=0.25, ??Vt=0.135mm/s???????????lr=0.8, ???Vt=0. 5mm/s | |
lr=2. 5, ???Vt=1mm/s??????????????Return ?????Vt=1mm/s | ||
Precision | 0.001μm | |
Tolerance | not more than ±10% | |
Repeatability | not more?than 6% | |
Power supply | Built-in Lithium ion battery?3200mAh, ?Charger :DC5V | |
Outline dimension | Main unit: 158×55×52mm ??drive?unit: 23×27×115mm | |
Weight（main unit） | Around380g | |
Zoom of height adapter | 40mm | |
working Environment | Temperature: - 20℃ ~ 40℃ Humidity: < 90% RH | |
Store and Transportation | Temperature: - 40℃ ~ 60℃ Humidity: < 90% RH | |
standards | ISO4287, ANSI B46.1, DIN4768, JIS B601 | |
